15' Dump Trailer

15′ Dump Trailer

15' Dump Trailer

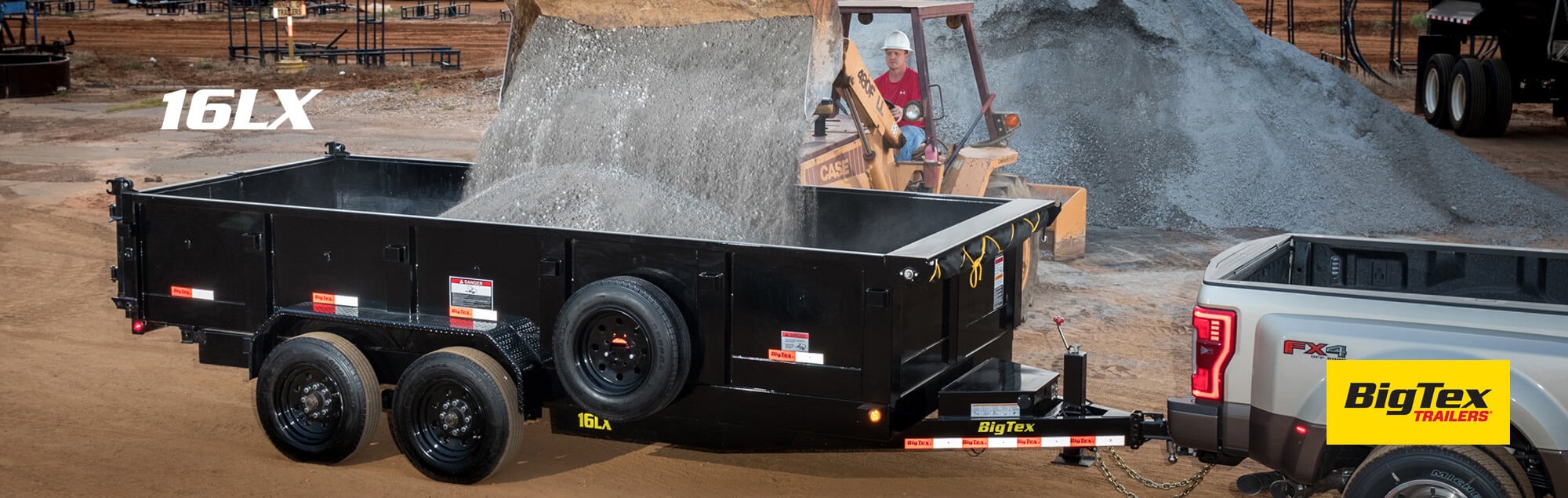

The 16LX Super Duty Tandem Axle Extra Wide Dump Trailer from Big Tex Trailers is the industry-leading 16K dump trailer in the country. This unit combines tube frame and heavy duty cross members in addition to the most complete box unit in the industry.


Request Rental Form

Adjustable 2-5/16" Cast Coupler in Channel
40 Degree Dump Angle
Cambered, Oil Bath Axles
Lockable Pump & Battery Box Mounted in Front of Bed
2" Square Tubing Top Rail
Dexter Brand Axles

Trailer Weights & Capacities

Trailer Weights & Capacities
Length Empty Weight Payload Box Capacity
14′ 5,030# 12,470# n/a
16′ 5,360# 12,140# n/a


Model# Weight Description
16LX-14 5,030# 83″ x 14′ Super Duty Tandem Axle Extra Wide Dump
16LX-16 5,360# 83″ x 16′ Super Duty Tandem Axle Extra Wide Dump



G.V.W.R. 17,500#
G.A.W.R. (Ea. Axle) 8,000#
Coupler Adjustable 2-5/16″ 18,000# Demco EZ Latch
Safety Chains 3/8″ Grd. 70 w/Safety Latch Hook (2 ea)
Jacks 12,000# Top Wind Drop Leg
Tongue 6″ Channel
Frame 8″ x 3″ Rec. Tubing
Fenders 9″ x 72″ 14 Ga. Diamond Plate Double Square Broke
Axles (2) 8,000# Oil Bath w/Electric Brakes
Suspension Multi-Leaf Slipper Spring w/Equalizer
Tire ST215/75 R-17.5 Load Range H
Wheel 17.5″ x 6.75″; Black Mod 8 Bolt
Floor 7 Gauge Smooth Steel
Lights L.E.D. D.O.T. Stop, Tail, Turn & Clearance
Elec. Plug 7-Way RV
Finish (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish.
Finish Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.


Adjustable 2-5/16″ Demco EZ Latch Coupler
12,000# Top Wind Drop Leg
Lockable Pump & Battery Box Mounted in Front of Bed
24″ Tall, 10-Gauge Steel Sides w/Formed Channel supports
7 Gauge Steel Floor
Fully Formed Tarp Shroud on Front
Crank Style Roll Tarp – Standard Equipped
Tarp Rod Included to Secure Tarp on Rear
J-Hooks on Sides & Rear for Tarp Control
Stakepockets Along Sides
Self Contained Electric/Hydraulic Scissor Hoist
Power Up/Power Down Hydraulic Pump
12V Interstate Deep Cycle Battery
110V On-Board Battery Charger (5 Amp)
Dexter D80N 8,000# Axles
Cambered, Oil Bath Acles
Nev-R-Adjust Electric Brakes on All Hubs
Grommet Mount Sealed Lighting
L.E.D. Lighting Package
Sealed, Modular Wiring Harness
Complete Break-A-Way System
Zip Breakaway Cable
Diamond Plate Fenders
2″ Square Tubing Top Rail on Dump Bed
Combo Gate (Barn Doors & Spreader Gate)
(4) 1/2″ D-Rings Inside Bed to Secure Equipment
Spare Tire Mount
Radial Tires
5/8″ Wheel Studs


Category Description
BODY 3 Solid Sheet Metal Sides
BODY 4 Solid Sheet Metal Sides
COUPLER Adjustable Pintle in Channel ILO Coupler
JACK 12,000# Elec/Hyd Jack by Stillwell
POWER 5 Watt Solar Charger
POWER Wireless Remote
RAMPS 7 Rear Slide In Ramps
TIRE/WHEEL Spare Tire (ST215/75 R-17.5 LR-H)
